# Rhino Sync Chat

Message everyone in the session, mention teammates, point them to a place, a view or objects in the model, and talk to your own AI agents.

Talk to your team right where you model. Point them to a spot, show them your view or the objects you mean, and they jump straight there. Chat is at the bottom of the **Sync** panel, and reaches everyone in the session, including people in the [web viewer](https://sync.wiki.mksdtech.com/collaboration/web-viewer.md).

<figure><img src="https://2088031227-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMFZITZJW4MHLYhDLac3k%2Fuploads%2Fgit-blob-0aa1f2738250b24c6020ee7e19b1f9a6fcdf12ff%2Fmock-chat-panel.png?alt=media" alt="Chat with messages from Mauro and Mikael, a reply, a point, a view, reactions, a mention and Mauro typing" width="412"><figcaption></figcaption></figure>

## Send a message

Type in the box and press Enter, or click **Send**. Shift+Enter starts a new line. The buttons next to the box:

| Button                | What it does                                                                             |
| --------------------- | ---------------------------------------------------------------------------------------- |
| **AI agents** (robot) | Opens the [AI agents](https://sync.wiki.mksdtech.com/collaboration/ai-agents.md) window. |
| **+**                 | Adds a point, your view or your selection. See below.                                    |
| **Emoji** (smiley)    | Adds an emoji. You can also type a shortcode such as `:done:` and press Tab.             |

When you join a session, Chat shows its last 100 messages. Select text in a message to copy it.

## Mention, reply and react

* **Mention:** type `@` and pick a name. The person gets a notice in their viewport, on the command line and as a green `@1` next to the box.
* **Reply:** hover over a message and click the arrow. Your answer quotes it.
* **React:** hover over a message and click the smiley. Hover over a reaction to see who added it.

<figure><img src="https://2088031227-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMFZITZJW4MHLYhDLac3k%2Fuploads%2Fgit-blob-fc3ad1b4914ddaae28a238e5ebbdadcea1d8e07b%2Fmock-chat-reply.png?alt=media" alt="Replying to Mauro with a point and a view added to the message" width="412"><figcaption></figcaption></figure>

## Share a point, a view or a selection

Click **+** next to the box:

<figure><img src="https://2088031227-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMFZITZJW4MHLYhDLac3k%2Fuploads%2Fgit-blob-02b1de8b98ff68e3dcb9548189a4eaf0664f974a%2Fmock-chat-add-menu.png?alt=media" alt="The + menu with Point, View and Selection" width="412"><figcaption></figcaption></figure>

* **Point**: pick a point in a viewport. Snaps work as usual.
* **View**: adds the camera of the active viewport.
* **Selection**: adds the objects you have selected, up to 2,000.

When a teammate clicks it in your message, **Point** turns their viewport to it and marks it with your message, **View** gives them your camera, and **Selection** selects those objects and zooms to them. Run `UndoView` to go back.

When an agent or a teammate asks for your view, click **Share my view** under their message.

## Your agents' tab

When you start your own [AI agents](https://sync.wiki.mksdtech.com/collaboration/ai-agents.md), Chat shows two tabs: **Team** for everyone, and **Agents** for you and your agents only. Nobody else sees the **Agents** tab. A bar beside the box shows where you're writing: green for **Team**, red for **Agents**.

## Clear the chat or pop it out

* **Clear chat**, next to the **Chat** title, empties the chat in your own Rhino only. Your teammates still see every message.

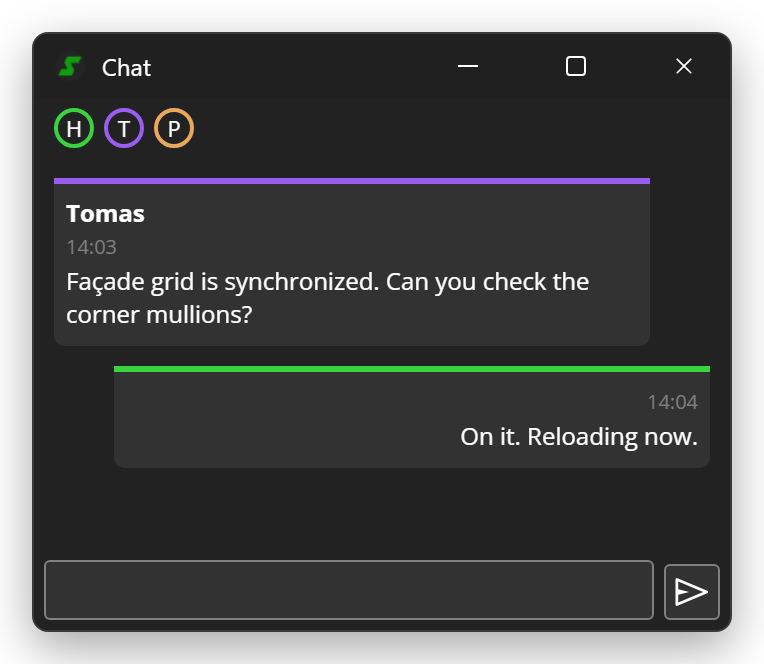

* **Open in a new window**, on the right, moves Chat to its own window.

<figure><img src="https://2088031227-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMFZITZJW4MHLYhDLac3k%2Fuploads%2Fgit-blob-138e2fa9a29320a8c49e80f3a522d9391b5e758a%2Fmock-chat-window.png?alt=media" alt="Chat in its own window, with Mikael, Mauro and HAL-1 at the top" width="382"><figcaption></figcaption></figure>

## On macOS

Chat works the same, with a simpler look: one line per message, **Mention someone** (@) to pick a name, and links such as **⌖ Point** before the text. Chat can't open in its own window, and there is no **Agents** tab, since agents can't be started on a Mac.
